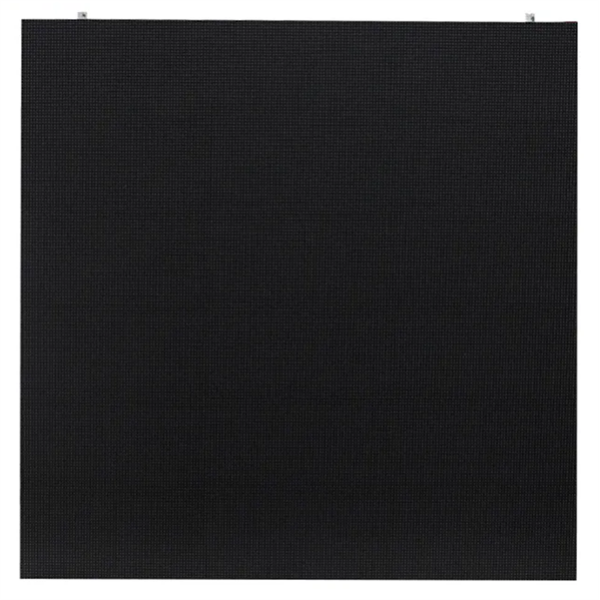

Indoor Led Display Module P4 Custom And Big Size Full ColorLed Display Panel For Fixed Installation
Your shopping cart is empty!
Product Description
Features of P4 led module:
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Application scopes of P4 led display screen: Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentantion,TV station, stage show, concert and so on.






Product Parameter
| Product Description | |
| Item | Indoor P4 led module |
| pixel pitch | 4mm |
| led lamps | SMD2121 |
| module size | 320*160mm |
| module resolution | 80*40=3200 dots |
| pixel density | 62500 dots/sqm |
| module weight | 330g |
| signal connection port | HUB75 |
| scan mode | 1/20 |
| max brightness | 800 cd/sqm |
| view angle (H/V) | 140º/140º |
| gray scale | 13-16 bit |
| color temperature | 6500-12000 K |
| refresh rate | 3840 Hz |
| module electricity current | 4.5A |
| input DC voltage | 5V DC |
