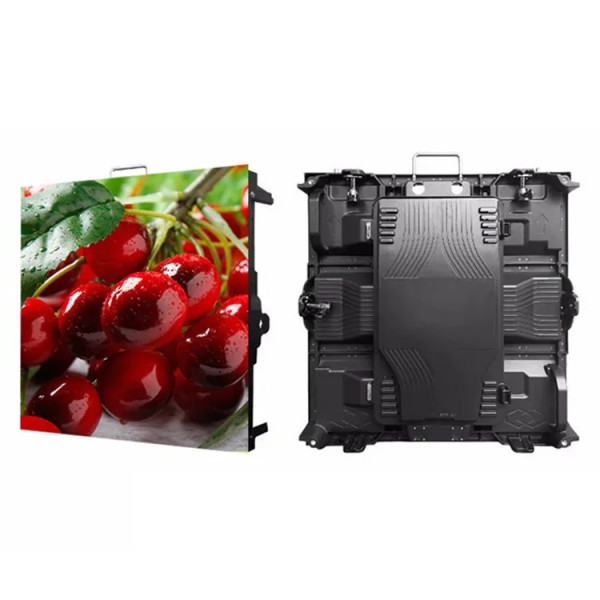

Hd video die-casting aluminum cabinet p2 led screen curve display media player flexible modules smd indoor module
Product Description
Features
1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience. 2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows 3. Light Weight: The body uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive. 4. Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble. 5. Easy Setup: Back modules are made easier for connection. 6. Totally front service design. Saving space and maintenance cost.
Product Parameter
| Product Description | |
| led module details | |
| Item | Indoor P2 aluminum led cabinet |
| pixel pitch | 2mm |
| module size | 320*160mm |
| module resolution | 160*80=1280 dots |
| pixel density | 250000 dots/sqm |
| led lamps | SMD1515 |
| scan mode | 1/40 |
| module electricity current | 4A |
| module weight | 365g |
| signal connection port | HUB75 |
| led cabinet details | |
| standard cabinet size | 640*480*60mm |
| cabinet resolution | 320*240=76800 dots |
| max brightness | 600 cd/sqm |
| view angle (H/V) | 140º/140º |
| gray scale | 13-16 bit |
| color temperature | 6500-12000 K |
| refresh rate | 3840 Hz |
| max power consumption | 400 W/sqm |
| average power consumption | 150 W/sqm |
| input AC voltage | 220V AC |
| working temperature | -20～50℃ |
| working humidity | 10% - 90% |
| display weight | 7 KG/pcs |
| protection level (F/B) | IP54 |
| maitenance method | front service |
