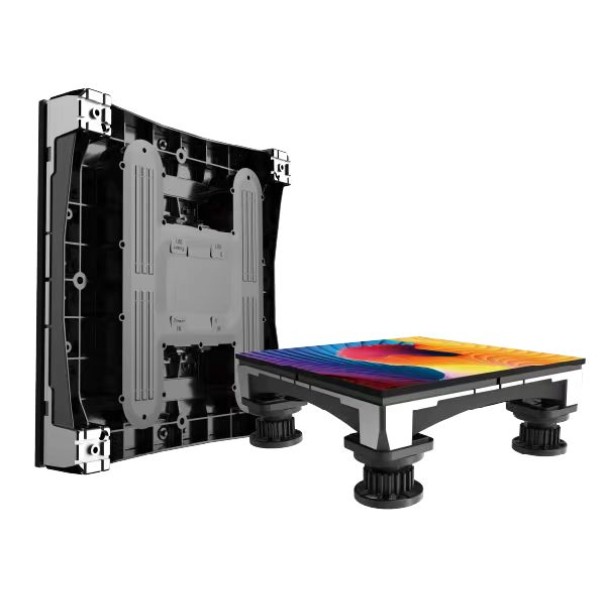

High Load-Bearing Stage Floor Video Indoor Outdoor Advertising Led Interactivo Led Dance Floor Display Screen P2.9 P3.91 P4.81
Product Description
1.Anti-slip
A+grade imported polymer PC raw material mask with customized anti-slip design, adapting to different environments.
2.Wear-resistant and flame-retardant
Adopted with A+ grade imported polymer PC raw material mask, super high wear resistance and flexibility, high temperature resistance, severe cold resistance and flame retardant.
3. High Brightness
With high brightness LEDs, the brightness can reach 3500nits- 4500nits, also high-transmittance plate on the surface of the module,make sure the contents can be seen clearly.

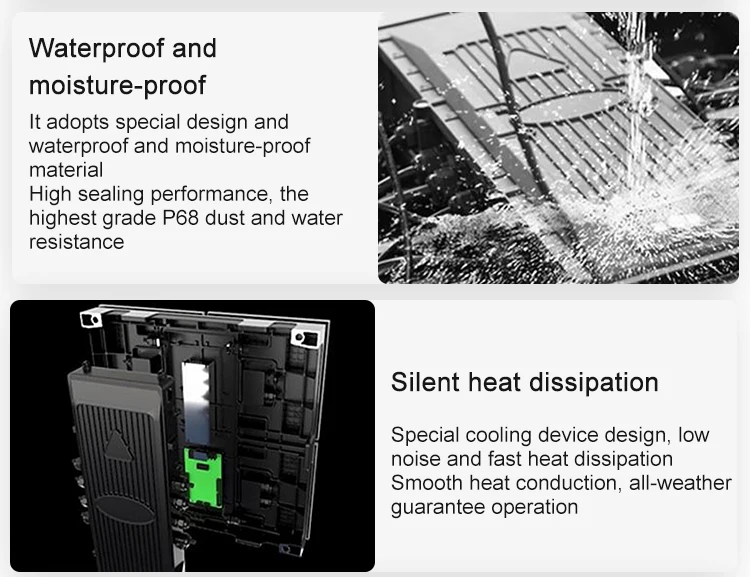

4. High Protection
The panel is completely sealed by mask and shell, also treated with waterproof rubber rings and three-proof glue even for each screw hole to ensure moisture-proof, waterproof, so it can rated as IP68 protection against dust and water.
Product Parameter
| Model | P2.976 | P3.91 | P4.81 |
| Pixel Pitch(mm) | 2.976mm | 3.91mm | 4.81mm |
| Pixel Matrix Per Sq.m | 112896dot/㎡ | 65536dot/㎡ | 43264dot/㎡ |
| LEDs package | SMD1921 | SMD2020 | SMD2020 |
| Brightness (cd/㎡) | 3000cd(4000cd Without Face Cover) | 3000cd(4000cd Without Face Cover) | 3000cd(4000cd Without Face Cover) |
| Scan | 1/21 | 1/16 | 1/13 |
| Module Dimension | 250*250mm | 250*250mm | 250*250mm |
| Cabinet Dimension | 500*500mm / 500*1000mm | 500*500mm / 500*1000mm | 500*500mm / 500*1000mm |
| Cabinet Resolution | 112896pixels/㎡ | 65536Pixels/㎡ | 43264Pixel/㎡ |
| Cabinet Material | die cast Aluminum | die cast Aluminum | die cast Aluminum |
| Cabinet Weight | 25 kg | 25 kg | 25 kg |
| Max. Power Consumption | 800/㎡ | 800/㎡ | 800/㎡ |
| Ave. Power Consumption | 300/㎡ | 300/㎡ | 300/㎡ |
| Refresh Rate (HZ) | 1920Hz | 1920Hz | 1920Hz |
| Viewing Angle (H/V) | 120°/120° | 120°/120° | 120°/120° |
| Waterproof Level | Front IP65. Back IP45 | Front IP65. Back IP45 | Front IP65. Back IP45 |
